技術參數 Specification
|
型號(TYPE) |

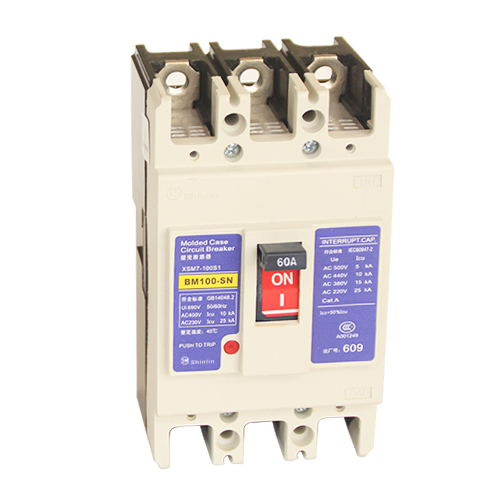

BM-100SN |
|||
|
殼架等級額定電流(Inm) Frame current(Inm) |
100 |
|||
|
額定電流Rated current In(A) 整定溫度40℃ Setting Temperature 40℃ |
75，100 |
|||
|
極數Number of poles |
3 |
|||
|
額定絕緣電壓Ui(V) Rated Insulation voltage Ui(V) |
AC |
690 |
||
|
DC |
250 |
|||
|
外型尺寸 Dimensions and mounting details
|
a |
75 |
||
|
b |
130 |
|||
|
c |
68 |
|||
|
ca |
86 |
|||
|
bb |
111 |
|||
|
aa |
25 |
|||
|
重量(Kg) Weight(Kg) |
0.65 |
|||
|
短路分?jǐn)嗄芰?/span>(KA) Short-circuitbreaking capacity(KA) |
GB 14048.2 AC Icu(KA) |
400V |
10 |
|
|
230V |
25 |
|||
|
IEC 60947-2 EN 60947-2 AC Icu(KA) |
550V |
5 |
||
|
440V |
10 |
|||
|
380V |
15 |
|||
|
220V 240V |
25 |
|||
|
JIS C8370(非對稱值/對 稱值AC) (Non-Symmetric value/Symmetric value AC) |
550V |
600V |
7.5 |
|
|
440V |
480V |
10 |
||
|
|
380V |
18/15 |
||
|
220V |
240V |
30/25 |
||
|
|
DC |
250V |
10 |
|
|
125V |
15 |
|||
|
接線方式(Connection way |
壓接端子 Front connection |
|||
|
選購配件 Shopping fitting |
報警開關 Alarming switch (AL) |
○ |
||
|
輔助開關 Auxiliary switch (AuX) |
○ |
|||
|
分勵脫扣器 Shunt release (SHT) |
○ |
|||
|
欠壓脫扣器 Undervoltage Release (UVT) |
○ |
|||
|
附件引線端子 Attachment lead terminal (LT) |
○ |
|||
|
外部操作把手 Outer operate handle |
○ |
|||
|
端子隔離蓋 Terminal isolation cover |
○ |
|||
|
脫扣器 Release |
液壓-電磁式 Hydraulic-Magnetic |
|||
|
脫扣按鈕 Trip button |
有 Have |
|||

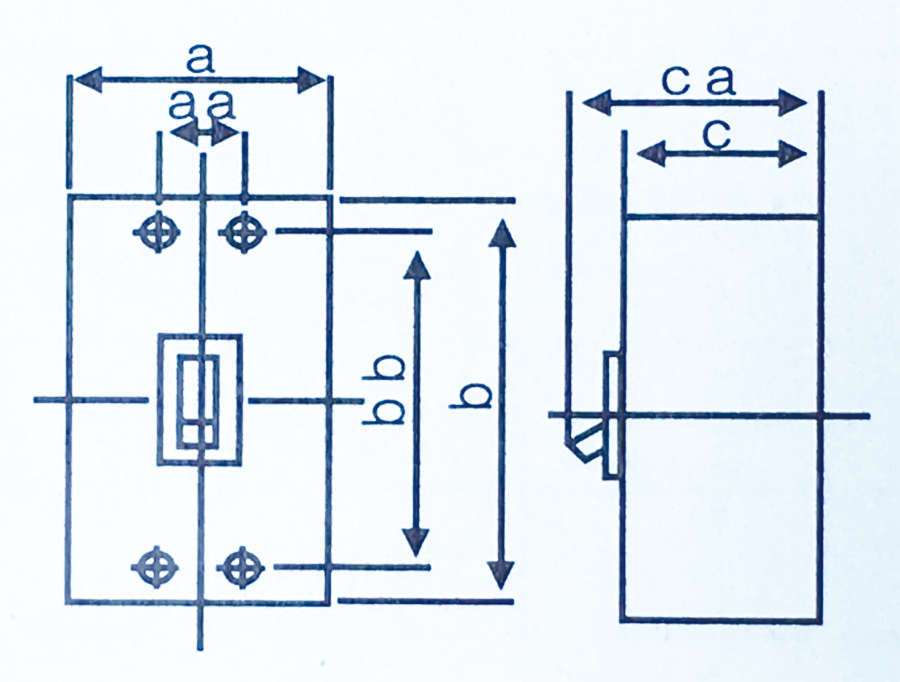

外型及安裝尺寸/Dimensions and mounting details
