技術參數 Specification
|
型號 TYPE |

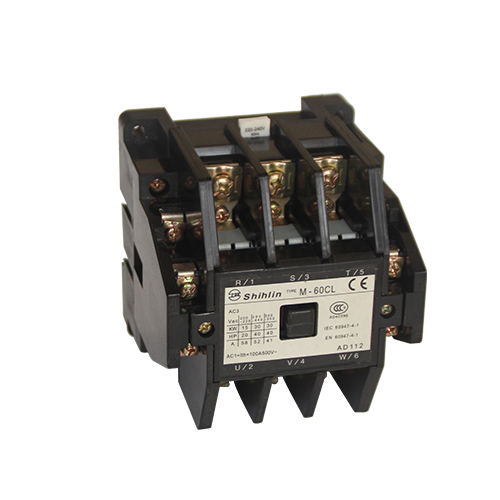

M-60CL |
||
|
三相電動額定機功率(KW) Motor rated 3Φ |
額定容量 Reted volume KW(HP) IEC947-4-1 |
200-220V |
19(25) |
|
380-440V |
37(50) |
||
|
500-550V |
37(50) |
||
|
額定電流 Reted volume(A) IEC947-4-1 |
200-220V |
68 |
|
|
380-440V |
65 |
||
|
500-550V |
52 |
||
|
約定空氣自由發熱電流 Continual electrify current(Ith)(A) |
100 |
||
|
輔助觸頭構成 Suitable electrify current |
2a 2b |
||
|
額定絕緣電壓 Rated insulation Voltage(Ui)(V) |
600V |
||
|
電氣壽命(×10 ^4 times) AC-3 Electrical life (×10 ^4 times) |
100 |
||
|
機械壽命 Mechanical life (×10 ^4 times) |
500 |
||
|
重量 Weigh(Kg) |
1.12 |
||
安裝尺寸/Mounting dimension(mm)、H：高度 High
