技術(shù)參數(shù) Specification
|
型號 Model |
32A |
|
|
型號 Model 交流線圈 AC coil |

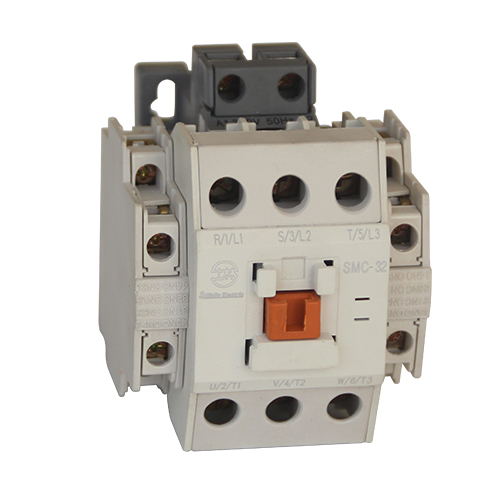

SMC-32 |
|
|
額定值/IEC60947-4 Rating value/IEC60947-4 |
KW |
A |
|
AC1 |
|
50 |
|
AC3 200/240V |
7.5 |
32 |
|
380/440V |
15 |
32 |
|
500/550V |
18.5 |
28 |
|
690V |
18.5 |
20 |
|
額定值/UL508 Rating value/UL508 |
HP |
A |
|
連續(xù)電流 Continuoued current |
|
45 |
|
三相 Three-phase 220V |
7.5 |
|
|
230V |
10 |
|
|
460V |
20 |
|
|
575V |
20 |
|
|
NEMA Size |
1 |
|
|
輔助觸點 Auxiliary contacts |
2極 2P 頂部安裝(Front) 4極 4P 頂部安裝(Front) |
|

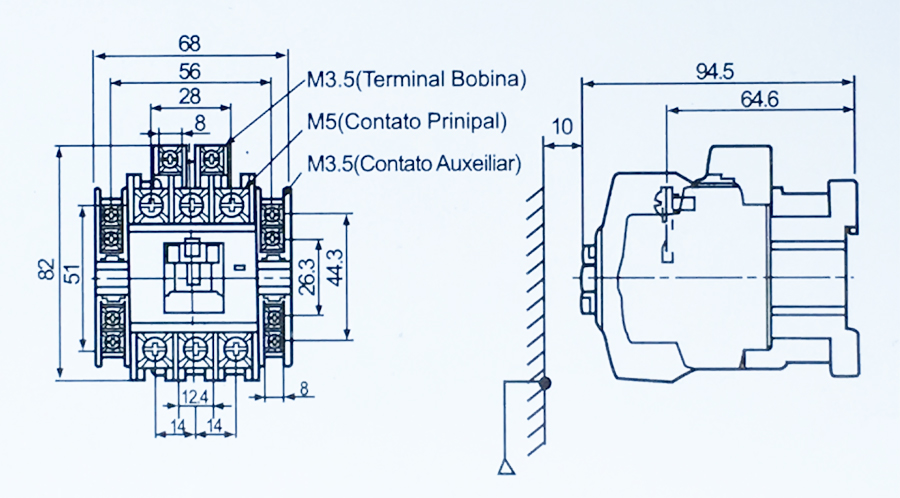

安裝尺寸/Mounting dimension(mm)、H：高度 High
