技術參數 Specification

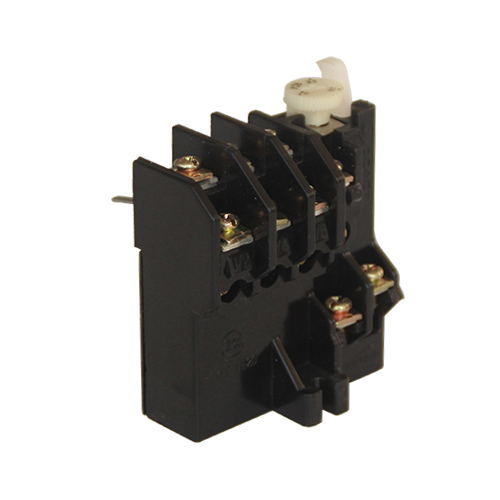

型號 TYPE |
TR-20 |
|
特性 Characteristics |
過負載保護 Overload protecting |
|
素子數(加熱子數) Heater number |
二素子 Heater NO.2 三素子 Heater NO.3 |
|
復位方式 Retum mode |
手動或自動復位 Manual or Auto return |
|
適用于交流接觸器配合 Suitable AC Contactor |
SM-16CL、SM20CL、SM-21CL、SM-30CL、SM-35CL、SM-40CL |
|
整定電流調節范圍 Adjust range and select(A) |
調整范圍 Adjust range |
選定 Select |
0.7-1.1A |
0.9A |
|
0.9-1.5A |
1.2A |
|
1.3-2.1A |
1.7A |
|
1.6-2.6A |
2.1A |
|
2.5-4.1A |
3.3A |
|
3.4-5.4A |
4.4A |
|
5-8A |
6.5A |
|
7-11A |
9A |
|
9-13A |
11A |
|
12-18A |
15A |
|
17-24A |
21A |
|
22-34A |
28A |
|
28-38A |
33A |
|
32-48A |
40A |
|
輔助觸頭構成 Aux.contactor structure |
1ab(1c) |
