技術(shù)參數(shù) Specification
|

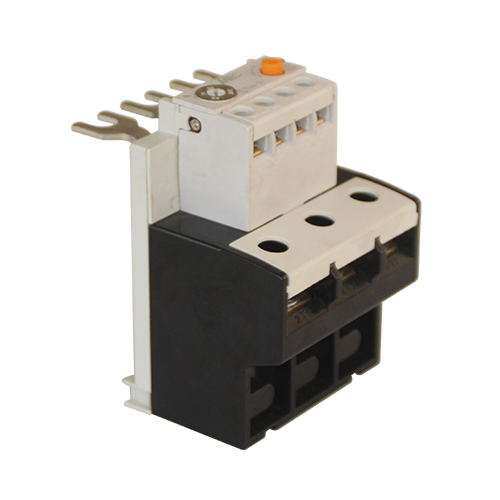

型號 |
GTH-85 |
|||
|
整定電流 Rated current(A) |
范圍 Ranges |
|||
|
最小 Min. |
中間 Mid. |
最大 Max. |
||
|
8.5 |
7 |
8.5 |
10 |
|
|
11 |
9 |
11 |
13 |
|
|
15 |
12 |
15 |
18 |
|
|
19 |
16 |
19 |
22 |
|
|
22 |
18 |
22 |
26 |
|
|
30 |
24 |
30 |
36 |
|
|
34 |
28 |
34 |
40 |
|
|
|
34 |
42 |
50 |
|
|
|
45 |
55 |
65 |
|
|
|
54 |
65 |
75 |
|
|
|
63 |
74 |
85 |
|
|
原理 Element No. |
2 熱元件 2 Heaters |
標準 Standard |
||
|
|
3熱元件 3 Heaters |
選擇 Option |
||
|
輔助觸頭復(fù)位方式 Aux.contact |
1NO 1NC |
|||
|
自動/手動 Auto/Manual |
||||
|
熱元件功率 Power consumption |
3.5VA/熱元件3.5VA/Heater |
|||
|
外形尺寸 Dimension(mm)(W×H×D) |
70×73×103 |
|||
|
安裝單位 Separate mounting unit |
AZ-85H |
|||
|
其它型號 Other model |
3 熱元件 3 Heaters |
GTH-85/3 |
||
|
缺相型 Differential |
GTK-85 |
|||
|
延時斷開 Delay open |
GTH-85/L |
|||
|
適用接觸器 Applied contactors |
GMC-50，65，75，85 |
|||
|
適用開關(guān) Applied Switches |
GMS-50，65，75，85 |
|||
