配電斷路器  Distribution circuit breaker

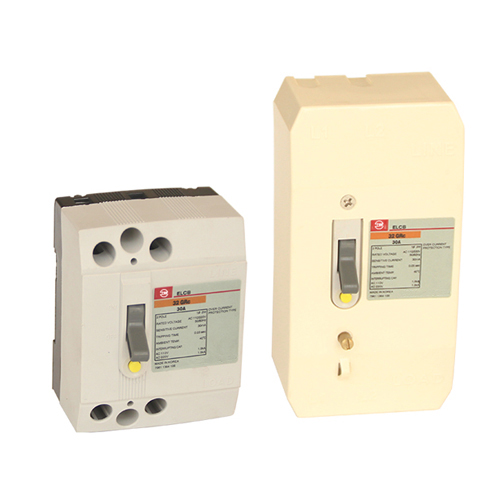

漏電斷路器 Leakage circuit breaker

型號

BS

SGR

保護 Protect

過載 Overload

過載和接地故障(30Gh 僅為接地保護)

Overload and ground failure(Only for ground protection)

額定電流 Rated current

6，10，15，20，30A

15，20，30A

額定電壓 Rated voltage

110/220VAC

AC88-242V

額定剩余電流  Rated residual current I△n

N.A

30mA

分?jǐn)嗄芰?/span> Breaking ability Icu

1.5KA at 110/220VAC

剩余不動作電流 Residualnon-operating current

N.A

0.5×I△n

動作時間 Operating time I△n

N.A

≤0.03秒

脫扣器類型 Type of Release

熱脫扣(雙金屬片) Thermal release(metal piece)

過流時熱脫扣(雙金屬片) Thermal release under over current

極數 Number of poles

1P+N，2P，2P+N

漏電時電子脫扣

Electron release under electricity leakage

接線 Connection

板前 Front panel

安裝 Mounting

螺栓固定 Bolt fixed

高度 High

42mm

端子類型 Type of teminal

方孔壓線式 Square hole press line type
