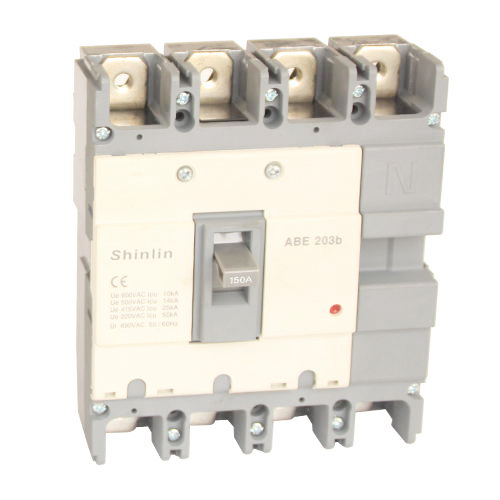

型號(TYPE) |
SABE204b |
||||
|
框架容量(AF) |
200 |
||||
|
額定工作電流Rated current In(A) 周圍環境溫度-5℃~+40 Reference ambient temperature |
125，150，175，200，225 |
||||
|
極數Number of poles |
3 |
||||
|
額定工作電壓Ue(V) Ratedservice voltage |
AC |
600~1000 |
|||
|
DC |
220 |
||||
|
外型尺寸 Dimensions and mounting details
|
a |
70 |
105 |
||
|
b |
165 |
||||
|
c |
56 |
||||
|
ca |
84 |
||||
|
bb |
126 |
||||
|
aa |
0 |
35 |
|||
|
額定控制容量(KW) Dimensions and mounting details |
符合GB14048-2使用類別AC-3 No symmetry value/symmetry value
|
550V 600V |
7.5 |
||
|
440V 480V |
10 |
||||
|
380V |
18 |
||||
|
220V 240V |
35 |
||||
|
等數符合 IEC 60/947-2 EN 60947-2 Icu/Ics |
AC |
500V |
7.5 |
||
|
440V |
10 |
||||
|
415V |
10 |
||||
|
380V |
18 |
||||
|
240V |
35 |
||||
|
DC |
220V |
10 |
10 |
||
|
110V |
- |
- |
|||
|
接線方式(Connection way |
壓著端子 Press terminal |
||||
|
選購配件 Shopping fitting |
警報開關 Alarming switch (AL) |
○ |
|||
|
輔助開關 Auxiliary switch (AuX) |
○ |
||||
|
電壓脫扣裝置 Voltage release mounting (SHT) |
○ |
||||
|
低電壓脫扣裝置 Low voltage release mounting (UVT) |
○ |
||||
|
附件引線端子臺 Accessory lead wire terminal platform (LT) |
○ |
||||
|
外部操作把手 Outer operate handle |
- |
○ |
|||
|
端子隔離蓋 Terminal isolation cover |
○ |
||||
|
自由脫扣裝置 Automatic tripping drvice |
- |
||||
|
脫扣按鈕 Trip button |
有 (Have) |
||||
外型及安裝尺寸/Dimensions and mounting details
