技術參數(shù) Specification
型號 TYPE |

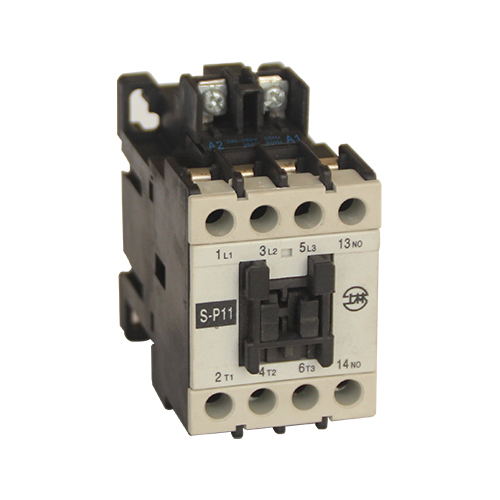

S-P11 |
||||
控制電動機容量 Motor rated volume |
KW |
HP |
A |
||
等效符合 CNS C4048 JIS C8325 JEM 1038 使用類別AC-3 額定功率(Rated power) |
單相 1 Phase |
100-110V |
0.55 |
0.75 |
12 |
200-220V |
1.1 |
1.5 |
12 |
||
三相 3 Phase |
200-220V |
3 |
4 |
12 |
|
380-440V |
4 |
5.5 |
9 |
||
500-55V |
4 |
5.5 |
7 |
||
約定空氣自由發(fā)熱電流 Continual electrify current(Ith)(A) 使用類別AC-1電阻性負載額定容量 AC 1 class electric resistance property load rated capacity |
20
|
||||
額定絕緣電壓 Rated insulation voltage(Ui)(V) |
AC600 |
||||
等效符合 ICE 60947-4-1 EN 60947-4-1 DIN VDE 0660 使用類別AC-3極額定容量 AC-3 lass Rated Volume |
三相 3 Phase |
240V
|
3.5 |
4.5 |
13 |
440V
|
5.5 |
7.5 |
12 |
||
550V
|
5.5 |
7.5 |
9 |
||
660V
|
5.5 |
7.5 |
7 |
||
約定空氣自由發(fā)熱電流 Continual electrify current(Ith)(A) 使用類別AC-1電阻性負載額定容量 AC 1 class electric resistance property load rated capacity |
20 |
||||
額定絕緣電壓 Rated insulation voltage(Ui)(V) |
AC660 |
||||
等效符合 UI 508 CAS-C22.2 額定容量 Rated volum |
一相 1 Phase |
110-120V |
|
0.5 |
9.8 |
220-240V |
|
2 |
12 |
||
三相 3 Phase |
220-240V |
|
3 |
9.6 |
|
440-480V |
|
7.5 |
11 |
||
550-600V |
|
10 |
11 |
||
約定空氣自由發(fā)熱電流 Continual electrify current(Ith)(A) |
24 |
||||
額定絕緣電壓 Rated insulation voltage(Ui)(V) |
AC600 |
||||
NEMA等級 Grade |
00 |
||||
輔助觸頭 Ausiliary contactor |
觸頭構成 Contactor structure |
標準 Standard |
1a (1 NO) |
||
特殊 Especial |
1b(1 NC) |
||||
等效符合 IEC 60947-5-1 EN 60947-5-1 額定電流 Rated current In(A) 使用類別AC-15 AC-15 Class |
110V
|
6 |
|||
220V
|
5 |
||||
440V
|
3 |
||||
550V
|
3 |
||||
約定空氣自由電流 Comtinual electrify current(Ith) (A) |
10 |
||||
輔助接點等級 Aux. contactor grde(UL) |
A600 |
||||
電氣壽命 Electrical life (AC3級) (萬次) (300times) |
100 |
||||
機械壽命 Mechanical life(萬次) 10000times) |
500 |

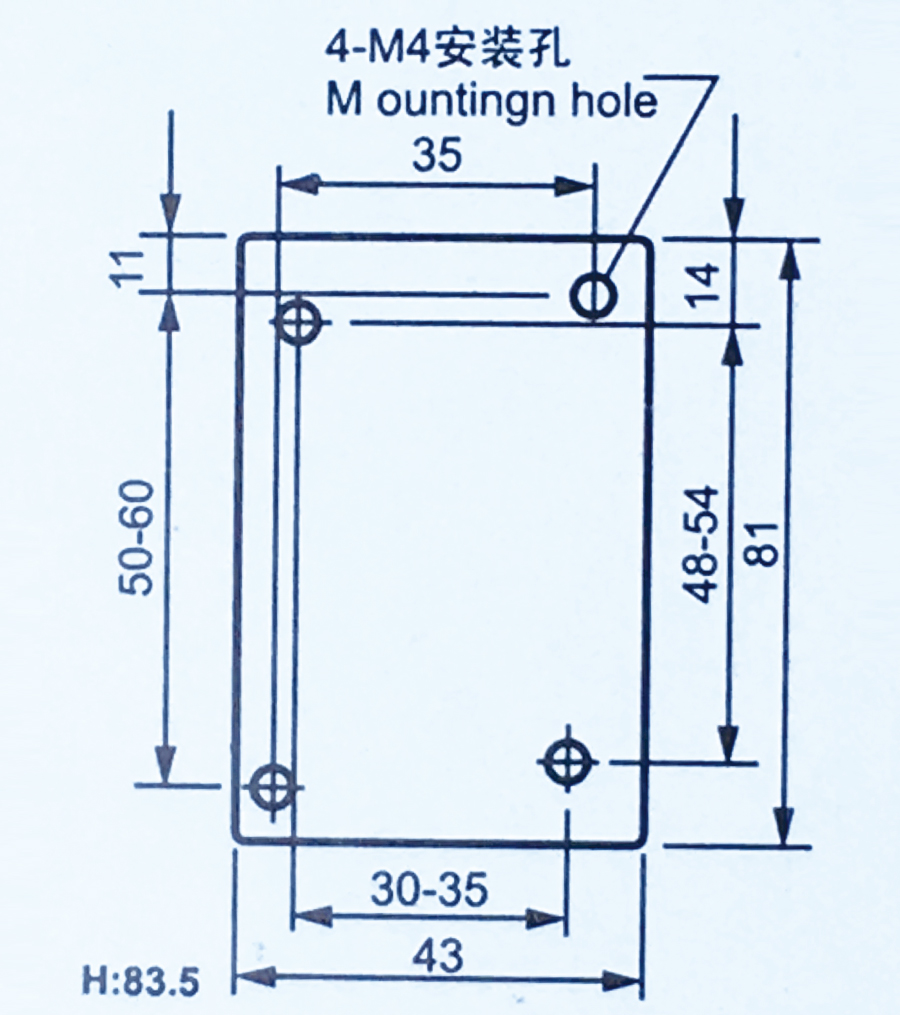

安裝尺寸/Mounting dimension(mm)、H:高度 High
